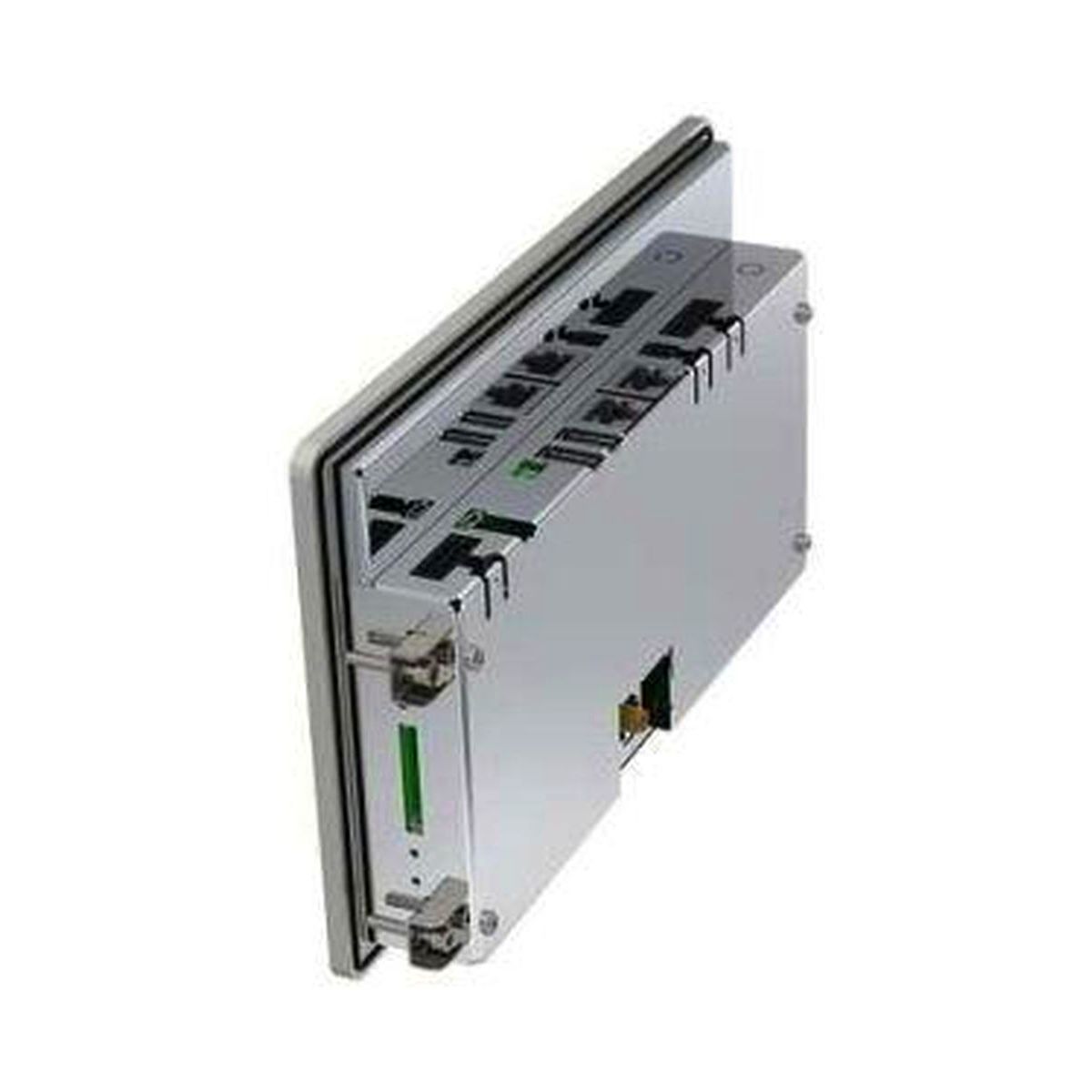

Tanaro Vision 7 PM MX8M-Mini
Price on request
SECO Tanaro Vision 7 PM MX8M-Mini - HMI Solutions HMI Solution |
---|
The seven-inch Panel Mount HMI with its robust design can be easily integrated into a product. Equipped with the latest SBC model from by Garz & Fricke, it features the modern i.MX 8M Mini processor generation from NXP. Manufactured in the modern 14 nm Fi |
Overview |
---|
Key Features |
---|
|
Introduction |
---|
The seven-inch Panel Mount HMI with its robust design can be easily integrated into a product. Equipped with the latest SBC model from by Garz & Fricke, it features the modern i.MX 8M Mini processor generation from NXP. Manufactured in the modern 14 nm FinFET process, this processor offers high performance with low power consumption and low operating temperature - even at extremely high performance requirements. The display features high resolution with 1024x600 pixel and a capacitive touchscreen for advanced user interaction. Multiple connectivity options such as RS232, RS485, CAN multiple USBs as well as 1GB Ethernet and integrated Wifi/BT make the Tanaro Vision 7 PM MX8M-Mini a future-proof HMI solution and perfect operating unit. The integrated MIPI-CSI camera interface also offers the option to integrate camera solutions. This also allows applications such as image processing and evaluation to be implemented without any problems. |
Specification |
---|
Description | The seven-inch Panel Mount HMI with its robust design can be easily integrated into a product. Equipped with the latest SBC model from by Garz & Fricke, it features the modern i.MX 8M Mini processor generation from NXP. Manufactured in the modern 14 nm FinFET process, this processor offers high performance with low power consumption and low operating temperature - even at extremely high performance requirements. The display features high resolution with 1024x600 pixel and a capacitive touchscreen for advanced user interaction. Multiple connectivity options such as RS232, RS485, CAN multiple USBs as well as 1GB Ethernet and integrated Wifi/BT make the Tanaro Vision 7 PM MX8M-Mini a future-proof HMI solution and perfect operating unit. The integrated MIPI-CSI camera interface also offers the option to integrate camera solutions. This also allows applications such as image processing and evaluation to be implemented without any problems. |
---|---|
Cpu | NXP i.MX 8M Mini Family based on ARM® Cortex®-A53 cores + general purpose Cortex®-M4 400MHz processor: i.MX 8M Mini Quad – Full featured, 4x Cortex®-A53 cores up to 1.8GHz |
Memory | 1 GB 32 bit LPDDR4 |
Graphics | GC320 2D accelerator + GCNanoUltra 3D accelerator Embedded VPU (not for Lite processors), able to offer: OpenGL ES 2.0, OpenVG 1.1 support |
Video Interfaces | MIPI-CSI Camera interface connector |
Video Resolution | 7.0 inch LVDS display, resolution 1024x600, LED lifetime typ. 20k hours |
Mass Storage | eMMC: 4 GB MLC |
Networking | 1x GbEthernet interfaces |
Usb | 1x USB 2.0 OTG micro-AB |
Audio | 1x speaker (connector), 1 W RMS (8Ω) parallel to internal speaker |
Serial Ports | 2x RS-232, RS-485 |
Power Supply | 9 ÷ 32 VDC |
Operating System | Yocto |
Operating Temperature | 0°C ÷ +60°C |
Dimensions | 202.0 x 126.2 x 35.5 mm |
Product Variants / Accessories |
---|
All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: Tanaro Vision 7 PM MX8M-Mini Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
