PE1000S
Price on request
Product number:
PE1000S
Product information "PE1000S"
| ASUS IoT PE1000S - Fanless Embedded BOX PC Embedded Box PC |
|---|
| Ultra-compact and rugged fanless din-rail gateway with Intel® Atom® x6000 series or Celeron® J6412 processor, featuring rich I/O ports to communicate between multiple devices and p |
| Overview |
|---|
| Key Features |
|---|
|
| Introduction |
|---|

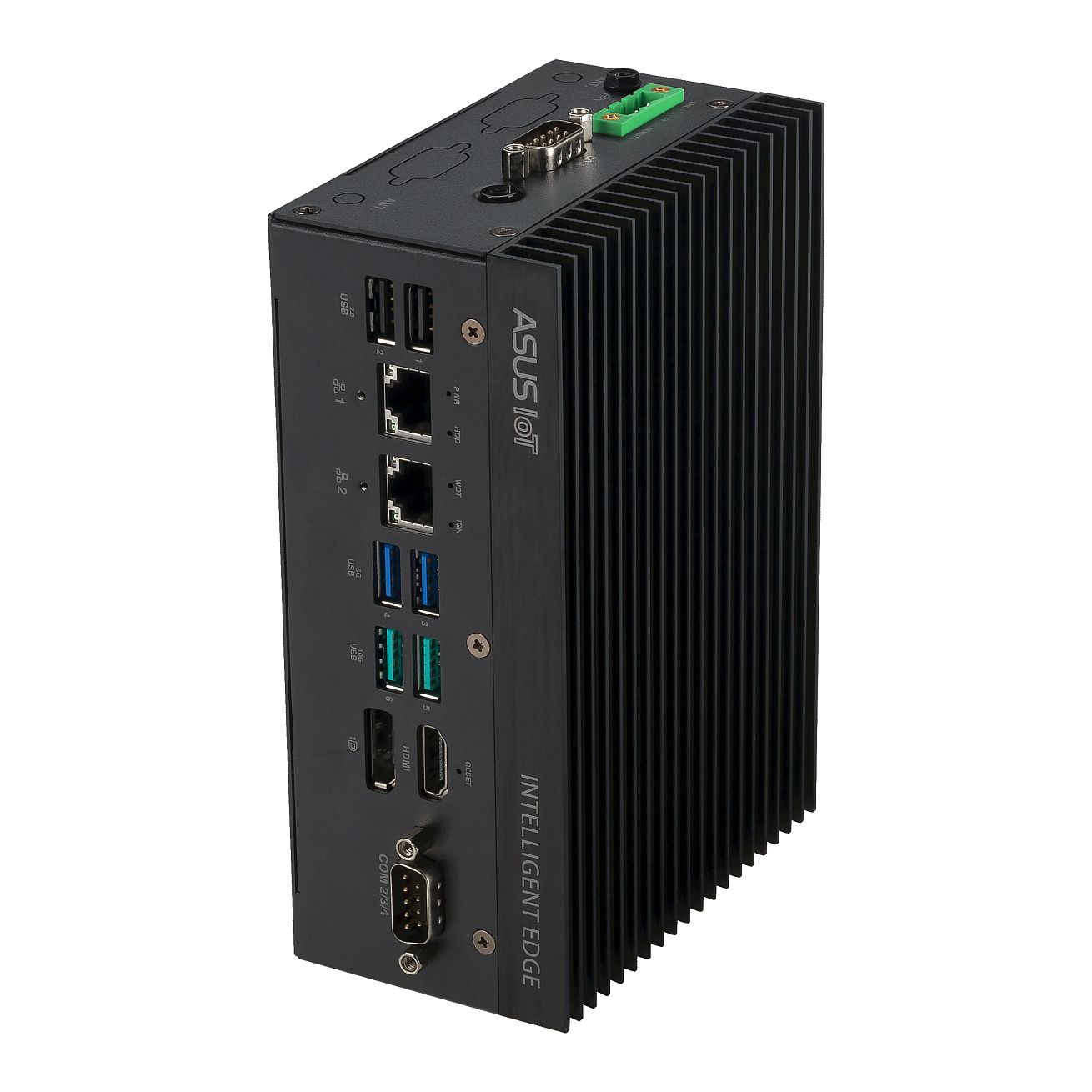

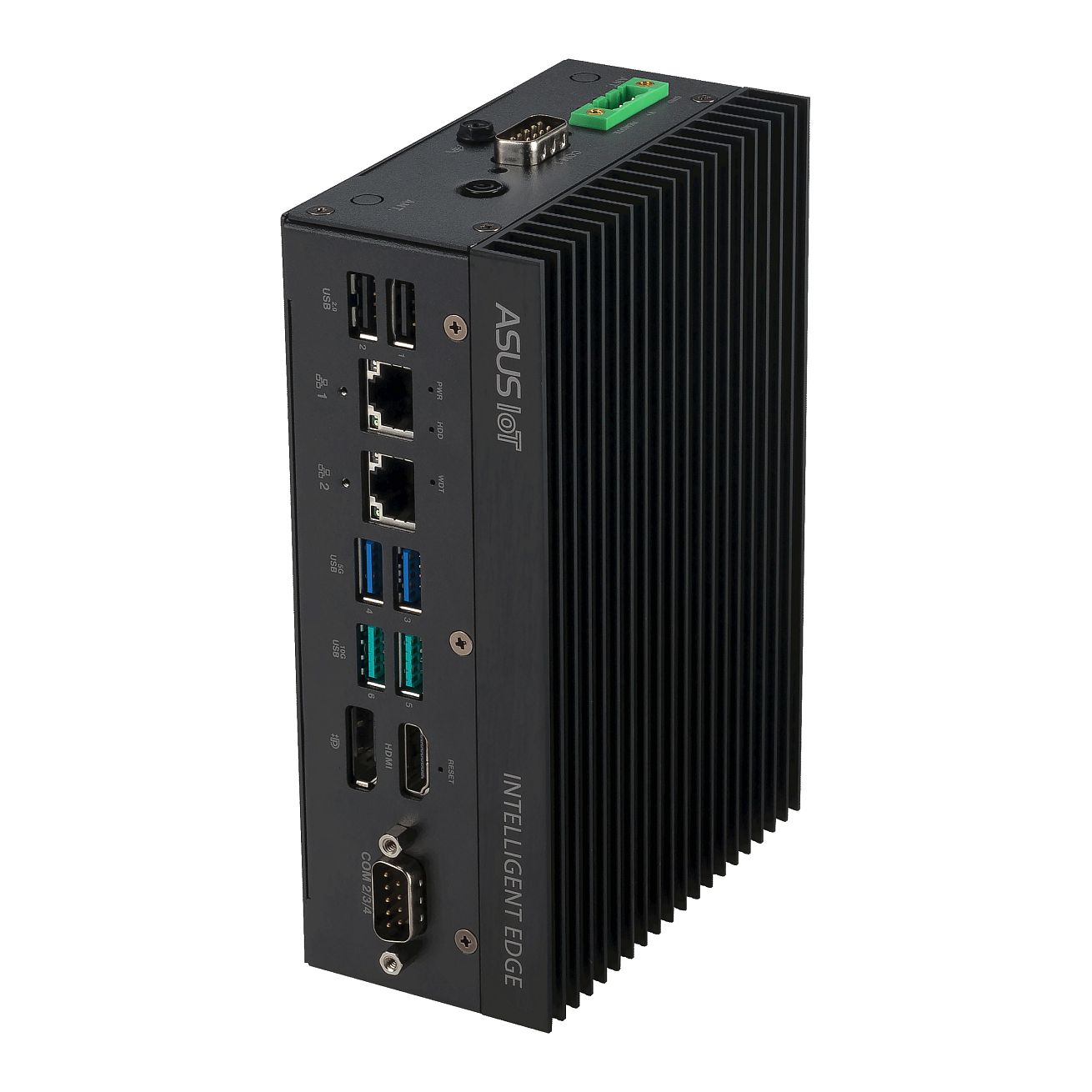

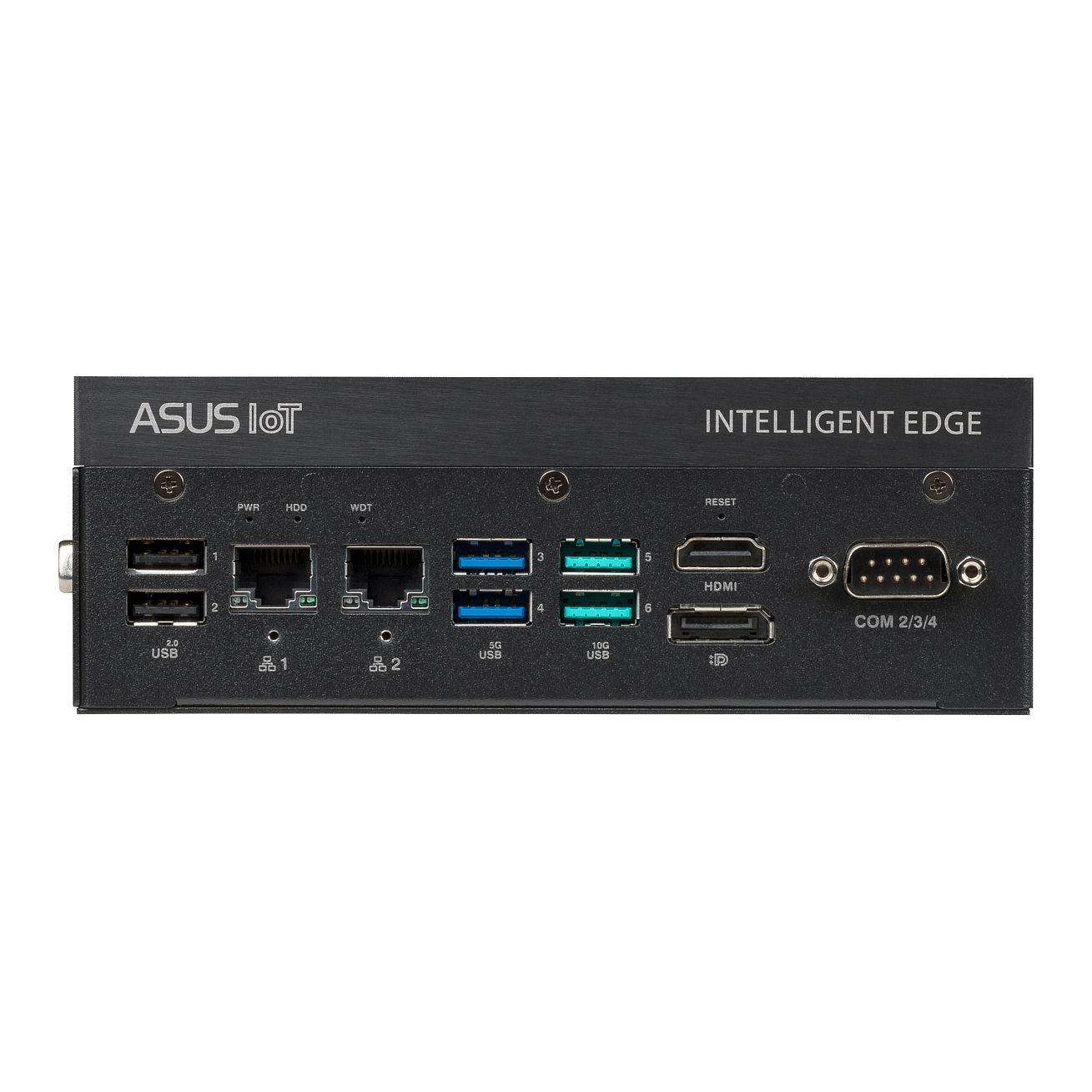

| ASUS IoT PE1000S is an ultra-compact and rugged fanless din-rail gateway with an Intel® Atom® x6000 series or Celeron® J6412 processor. It features a rich lineup of I/O ports to communicate between multiple devices and provide highly efficient data collection. The ultra-compact chassis is ideal for space-limited environments and measuring just 56 x 110 x 160 mm. With phenomenal thermal design and power solutions, PE1000S supports wide temperatures ranging from -25° C to 70° C, and wide-range 9 to 36V DC-in. Connectivity options include two 2.5 GbE ports, up to six COM ports, six USB ports, and one 2.5-inch SSD is also supported. PE1000S also offers three M.2 slots for WiFi, 4G/5G, and an NVMe® port for expansion flexibility. For the POE SKU, it offers two additional 2.5 GbE PoE+ to meet the IEEE802.3at standard, and it supports 25.5-watt power output per port. ASUS IoT PE1000S is engineered to withstand shocks and vibration, and it meets the military-grade MIL-STD 810H standard. Built for space-limited, challenging environments, it’s ideal for a wide range of uses, including smart factories or energy management systems ― or it can be used as an automatic gate controller and more. |
| Specification |
|---|
| Model | PE1000S |
| CPU Manufacturer | Intel |
| Category | Rugged Edge System |
| Application | Ultra-compact embeddedGeneral embedded |
| All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: PE1000S Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
