Mini PC PL64

ASUS IoT

Price on request

Product number: Mini PC PL64

Product information "Mini PC PL64"

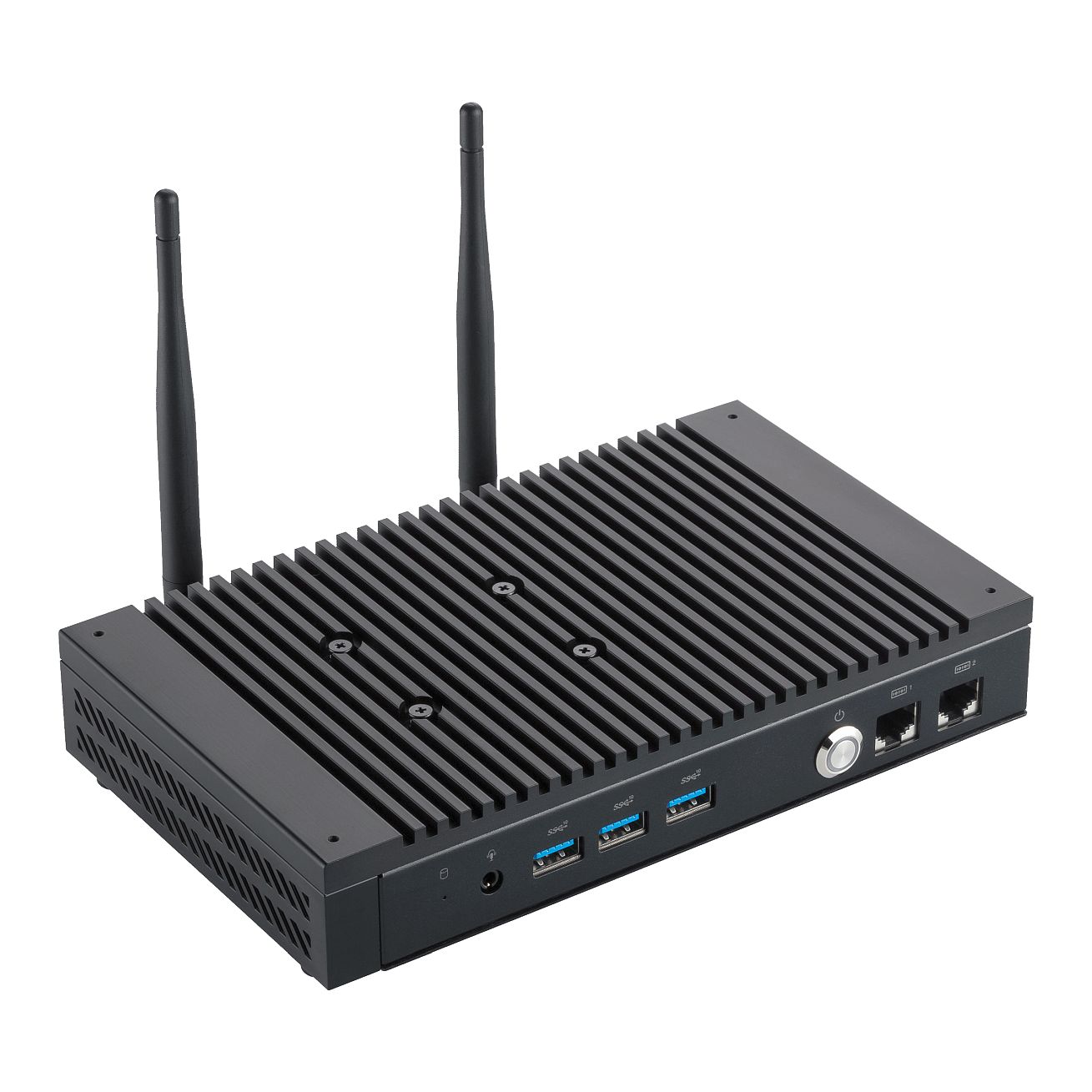

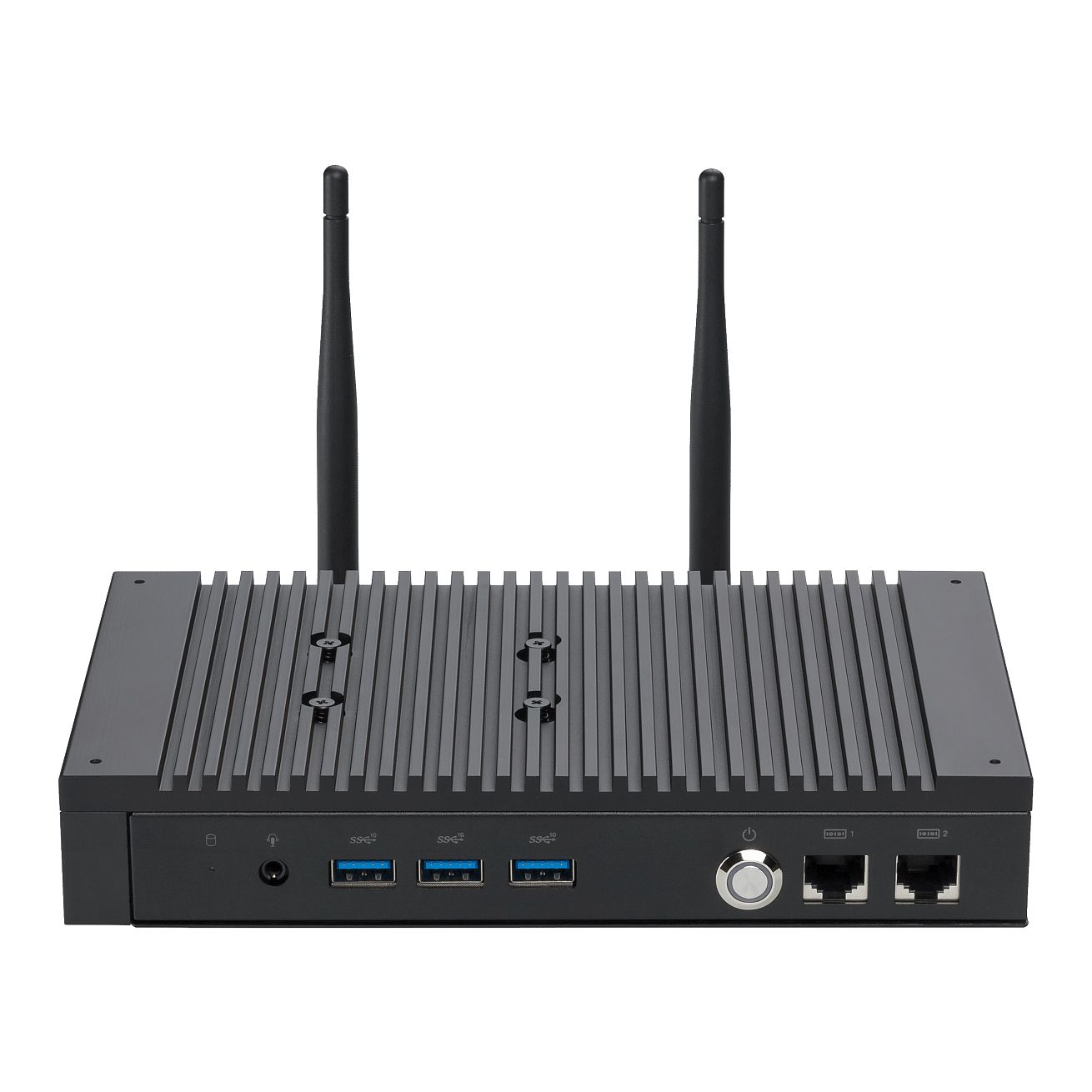

ASUS IoT Mini PC PL64 - Edge AI Computer Embedded Box PC Ultraslim computer with 12th Gen Intel® Core™ processors, fan-less chassis for 15W CPU, 4K triple-display support, dual LAN, dual COM ports, PCIe® Gen 4 SSD, WiFi 6E, 50°C operational ambient temperature

ASUS IoT Mini PC PL64 - Edge AI Computer Embedded Box PC
Ultraslim computer with 12th Gen Intel® Core™ processors, fan-less chassis for 15W CPU, 4K triple-display support, dual LAN, dual COM ports, PCIe® Gen 4 SSD, WiFi 6E, 50°C operational ambient temperature

Beispiel Menü

Overview

Key Features
Powered by Intel® 12th Generation Core™ processors Fan-less design for 15-watt CPU while minimizing noise and dust ingress 4K triple-display support via HDMI with EDID emulation and virtual display Slim and compact, measuring just 199.7 x 119.7 x 33.9 mm Comprehensive I/O ports including dual COM, dual LAN with 1x 2.5G and up to five USB ports Support up to up to 2x M.2 PCIe Gen4x4 SSD Integrated Wi-Fi 6E and Bluetooth for easy cordless connections Provide plenty of mounting solution including wall mount, din rail, VESA and rack mount Support up to 50°C operational ambient temperature 24/7 reliability — Extensively tested to ensure long-term dependability

Key Features

Powered by Intel® 12th Generation Core™ processors
Fan-less design for 15-watt CPU while minimizing noise and dust ingress
4K triple-display support via HDMI with EDID emulation and virtual display
Slim and compact, measuring just 199.7 x 119.7 x 33.9 mm
Comprehensive I/O ports including dual COM, dual LAN with 1x 2.5G and up to five USB ports
Support up to up to 2x M.2 PCIe Gen4x4 SSD
Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
Provide plenty of mounting solution including wall mount, din rail, VESA and rack mount
Support up to 50°C operational ambient temperature
24/7 reliability — Extensively tested to ensure long-term dependability

Specification

Barebone	Mini PC PL64MiniPC PL64
Operating System	Windows 11 ProWindows 11 HomeWindows 10 IoT Enterprise
i7/i5 Processor	Integrated - Intel® Iris® Xe Graphics Integrated - Intel® UHD Graphics Integrated - Intel® Iris® Xe Graphics Integrated - Intel® UHD Graphics
QVL	2 x DDR4 SO-DIMM, Max. 32GB x 2* Memory support may vary based depending on CPU characteristics. Please check the Qualified Vendors List for more details.2 x DDR4 SO-DIMM, Max. 32GB x 2* Memory support may vary based depending on CPU characteristics. Please check the Qualified Vendors List for more details.
Storage	1 x M.2 2280 PCIe Gen4x4, supports 256GB~2TB NVMe™ SSD1 x M.2 2280 PCIe Gen4x4, supports 256GB~2TB NVMe™ SSD1 x M.2 2280 PCIe Gen4x4, supports 256GB~2TB NVMe™ SSD1 x M.2 2280 PCIe Gen4x4, supports 256GB~2TB NVMe™ SSD
LAN	10/100/1000/2500 Mbps, 2.5G Intel® LAN10/100/1000 Mbps, 1G Intel® LAN10/100/1000/2500 Mbps, 2.5G Intel® LAN10/100/1000 Mbps, 1G Intel® LAN
Audio	Realtek® ALC3251 HD Audio CODECRealtek® ALC3251 HD Audio CODEC
RJ50; support RS232, 422, 485	3 x USB 3.2 Gen2 Type-A2 x USB 3.2 Gen1 Type-A2 x COM1 x Audio Jack1 x Kensington Lock3 x USB 3.2 Gen2 Type-A2 x USB 3.2 Gen1 Type-A2 x COM 1 x Audio Jack1 x Kensington Lock
Up to 4K@60Hz	3 x HDMI 2.1 1 x 2.5G RJ45 LAN1 x RJ45 LAN1 x EDID reset2 x Antenna Jack1 x DC-in3 x HDMI 2.1 1 x 2.5G RJ45 LAN1 x RJ45 LAN1 x EDID reset2 x Antenna Jack1 x DC-in
Speaker	NoNo
Power Supply	19Vdc, 3.42A, 65W Power Adapter19Vdc, 3.42A, 65W Power Adapter
Dimensions (W x D x H)	199.7mm x 119.7mm x 33.9mm199.7mm x 119.7mm x 33.9mm
Weight	1.0KG1.0KG
Color	ECO Black, non-logoECO BlackECO Black, non-logoECO Black
Certificates	BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI

All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.
Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: Mini PC PL64
