APLMA-IM-A

ASUS IoT

Price on request

Product number: APLMA-IM-A

Product information "APLMA-IM-A"

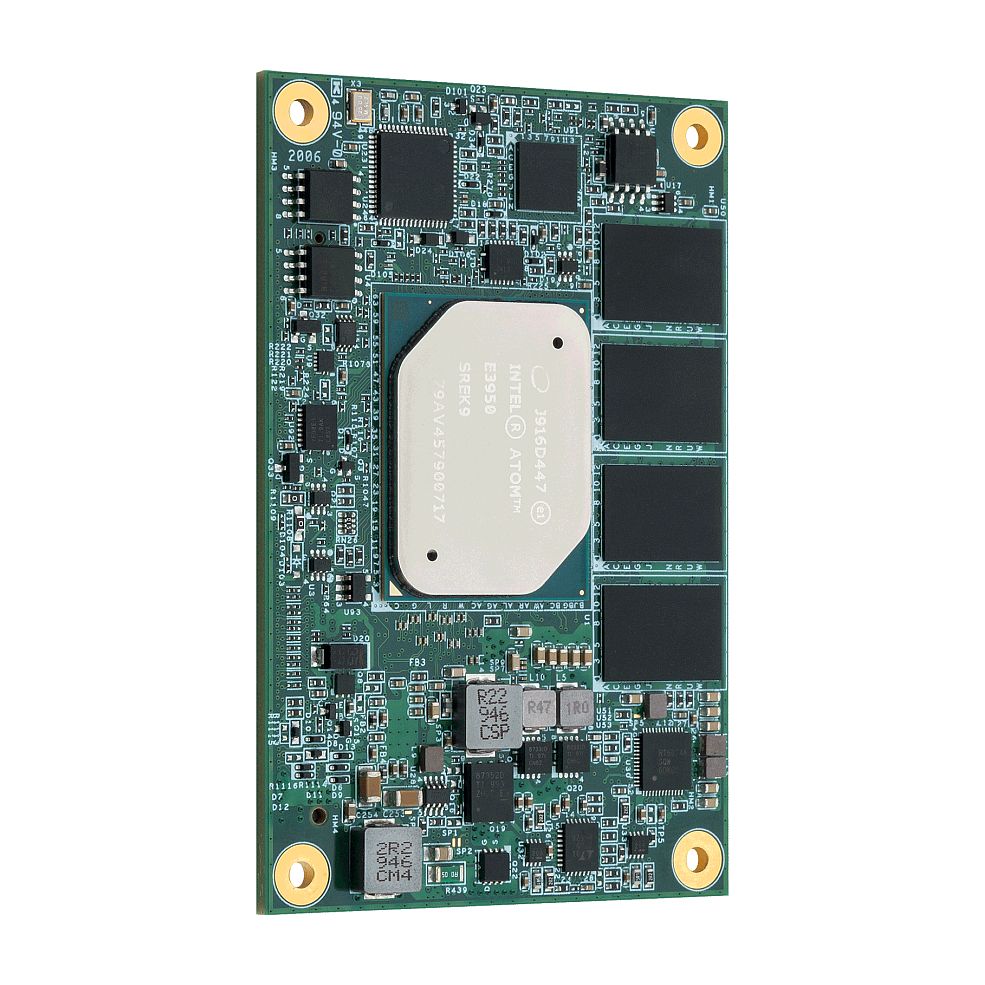

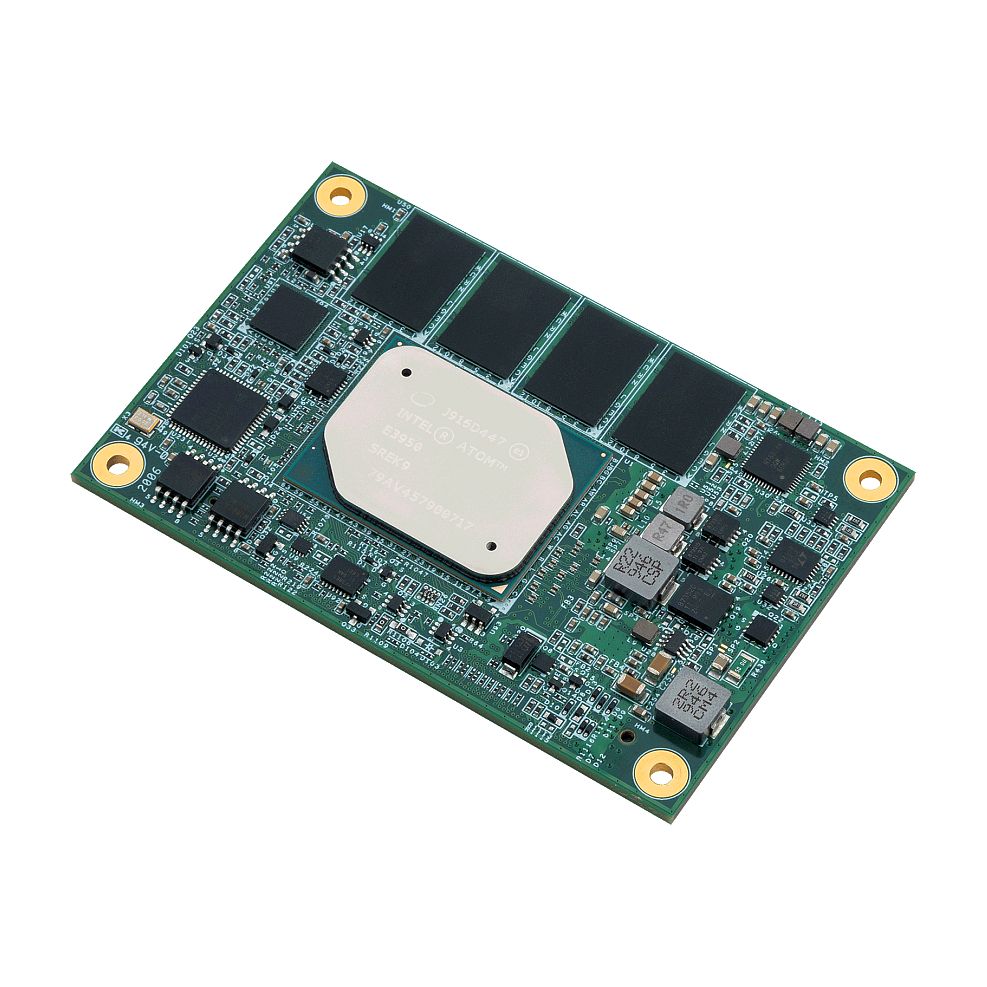

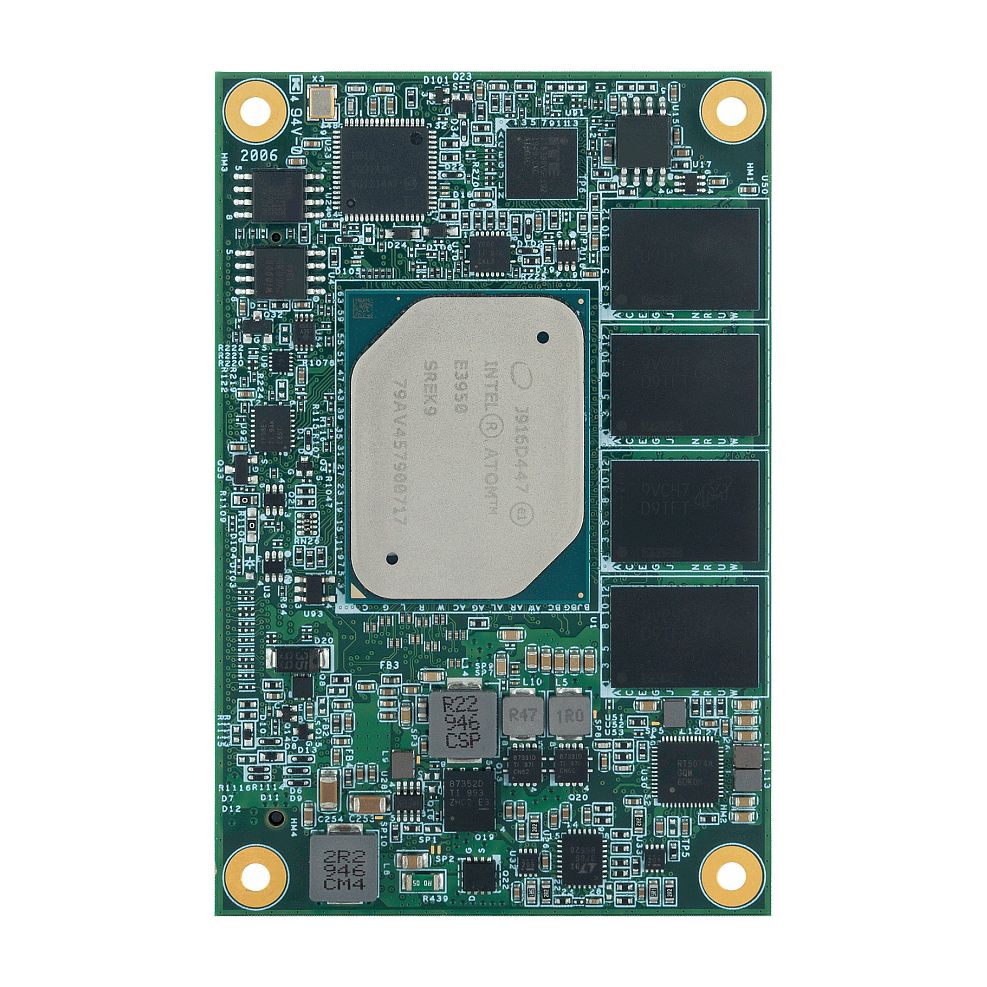

ASUS IoT APLMA-IM-A - COM Express CPU Module Mini Type10 Module, Intel® Apollo Lake Atom® E3900 series SOC. On Board LPDDR4 MEM up to 8GB, provides LVDS/eDP, HDMI/DP with 4K resolution display, and supports PCIex1, USB 3.0, USB 2.0 and 2x SATAIII devices.

ASUS IoT APLMA-IM-A - COM Express CPU Module
Mini Type10 Module, Intel® Apollo Lake Atom® E3900 series SOC. On Board LPDDR4 MEM up to 8GB, provides LVDS/eDP, HDMI/DP with 4K resolution display, and supports PCIex1, USB 3.0, USB 2.0 and 2x SATAIII devices.

Overview

Key Features
Intel® Atom® Processor E3900 Series (Apollo Lake) On Board LPDDR4 SDRAM up to 8GB On Board optional eMMC up to 64GB Low Power Consumption (6 to 12W) Supports Wide Operating Temperature and Wide Voltage

Introduction

Asus APLMA-IM-A is designed with Intel® Apollo Lake Atom® E3900 series SOC with Type 10 pin definition. It brings three important factors including DDR4 memory support, PCIe Gen2 support, and USB 3.0 support. Extend PCIe Gen2 ports can support high speed IO card for more applications. In the meantime, it's compatible with Type 10 carrier board. As the world’s No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.

Specification

Model	APLMA-IM-A
Form Factor	Mini Type10
CPU	Apollo Lake Atom E3900 series
Operating Temperature	0°C to 60°C

All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.
Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: APLMA-IM-A
Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH.
