NUC-N6415
Price on request

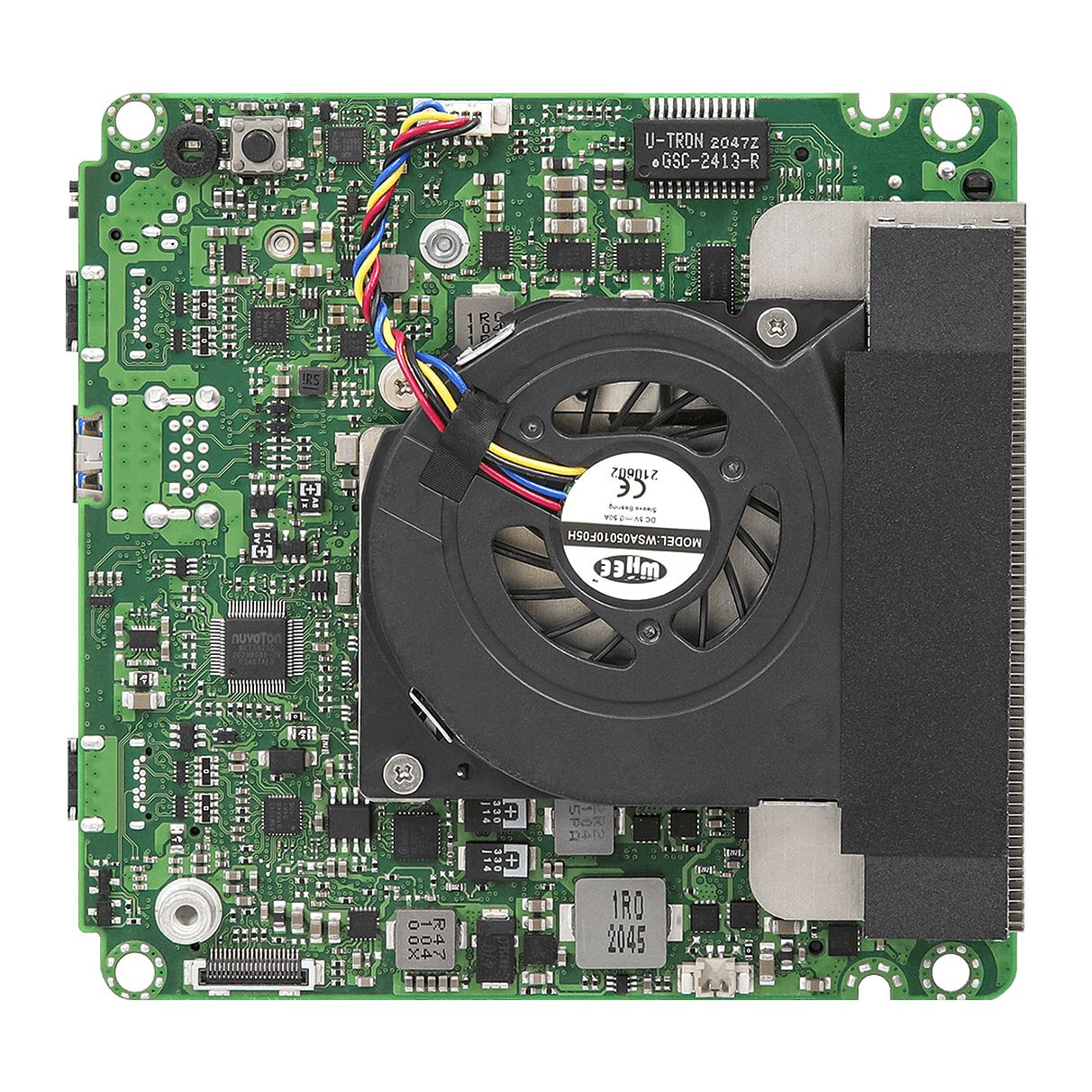

ASROCK Industrial NUC-N6415 - NUC Single-Board-Computer with Intel® Elkhart Lake |
---|
NUC Motherboard - Intel®ElkHart Lake Processors N6415 |
Overview |
---|
Key Features | Supported CPUs |
---|---|
|
CPU-Product Family: Intel® Elkhart Lake
|
CPU-Variants |
---|
CPU | Intel® Pentium® N6415 |
---|---|
Processor Number | N6415 |
Cache | 1.5 MB L2 Cache |
Total Cores | 4 |
Total Threads | 4 |
PCI Express Revision | 3.0 |
Specification |
---|
Processor System
CPU | Intel ElkHart Lake Processors NUC-N6415 (N6415, QC, Max Speed up to 3.0GHz, 6.5W) |
---|---|
Chipset | MCP |
BIOS | AMI SPI 256 Mbit |
Form Factor
Dimensions | NUC (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm) |
---|
Memory
Technology | Dual Channel DDR4 3200 MHz |
---|---|
Capacity | 32GB (16 GB per DIMM) |
Socket | 2 x 260-pin SO-DIMM |
Graphics
Controller | Intel Gen 11 Graphics |
---|---|
HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
DisplayPort | DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz |
MultiDisplay | Max 2 display |
Expansion Slot
M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 |
---|
Audio
Interface | Realtek ALC233, High Definition Audio. |
---|
Ethernet
Controller/ Speed | Realtek RTL8111G-CG/RTL8111H-CG with 10/100/1000 Mbps |
---|---|
Connector | 2 x RJ-45 |

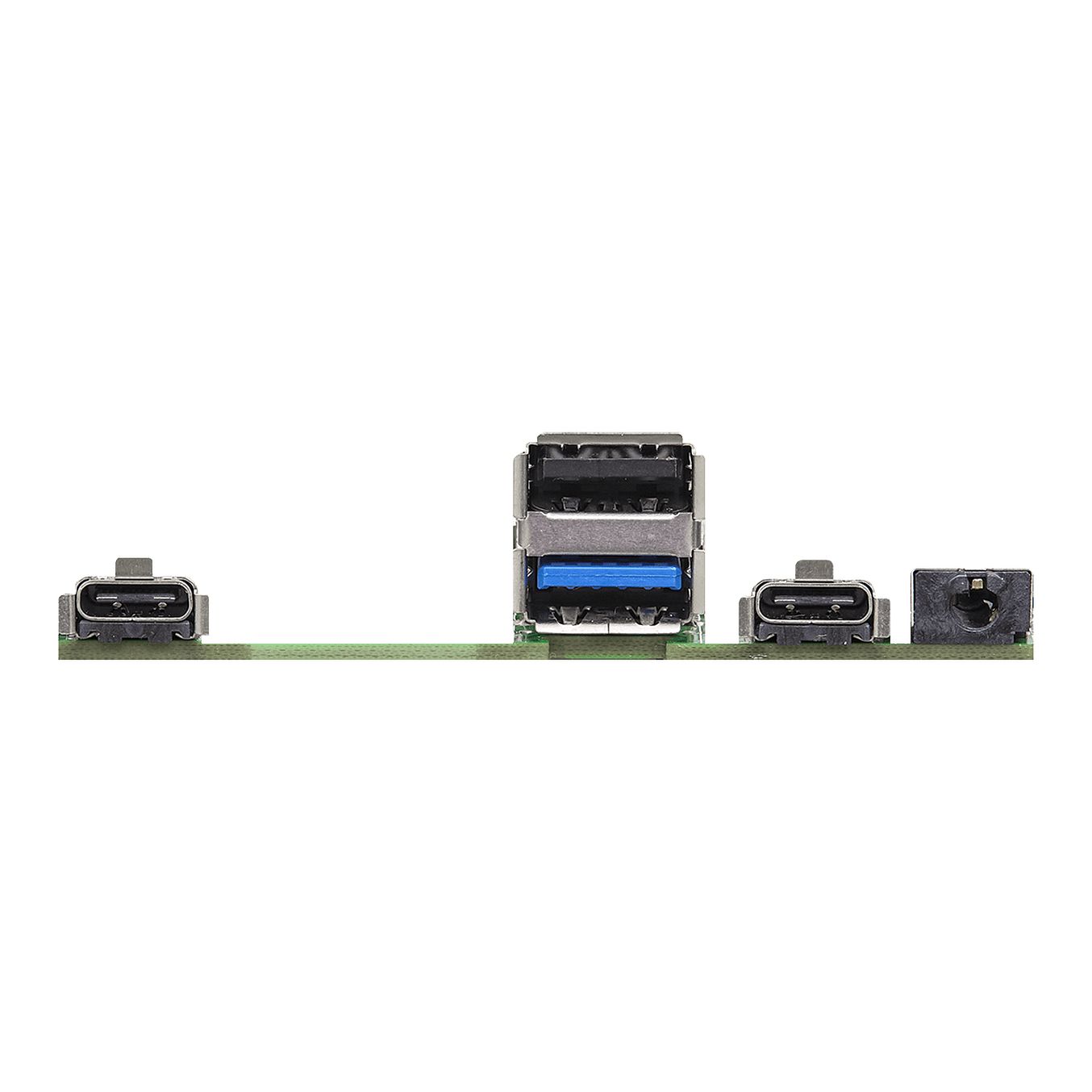

Front I/O
USB | 1 x USB 3.2 Gen2 (Type-A) 2 x USB 3.2 Gen2 (Type-C, 5V/3A) 1 x USB 2.0 |
---|---|
Audio | 1 (headphone & microphone jack) |

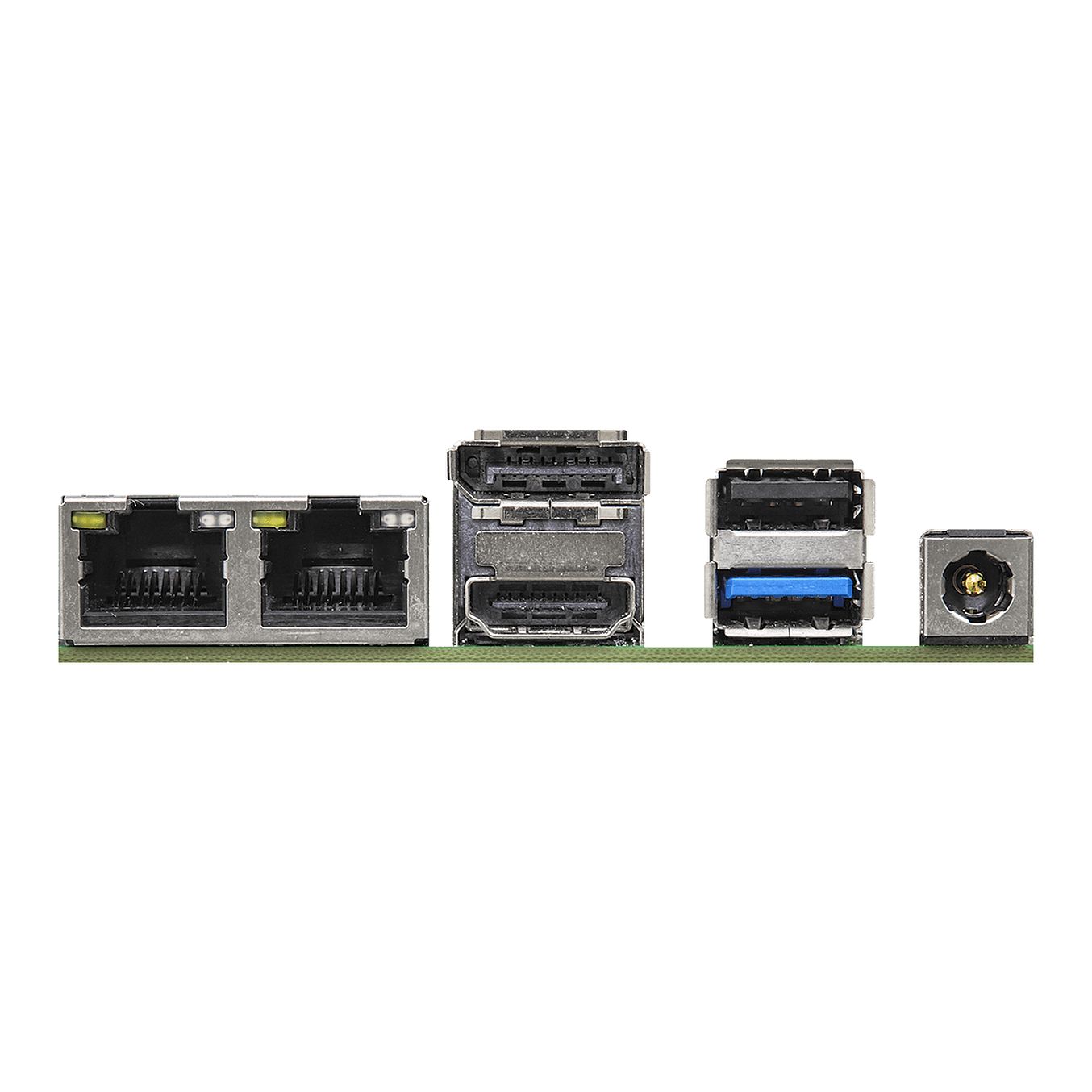

Rear I/O
HDMI | 1 x HDMI 2.0b |
---|---|
DisplayPort | 1 x DP 1.2 |
Ethernet | 2 x 1 Gigabit LAN |
USB | 1 x USB 2.0 1 x USB 3.2 Gen2 (Type-A) |
DC Jack | 1 |
Internal Connector
USB | 2 x USB 2.0 (1 x 2.00 pitch header) |
---|---|
COM | 1 x COM(RS232/422/485) |
Audio Header | line in /out (share with audio Jack, by BIOS setting) |
Security
TPM | TPM 2.0 onboard IC |
---|
Storage
M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket) |
---|---|
SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
Output | From Super I/O to drag RESETCON# |
---|---|
Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
Input PWR | 12V~19V DC-In Jack |
---|---|
Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
Operating Temp | 0ºC ~ 70ºC |
---|---|
Storage Temp | -40° C ~ 85° C |
Operating Humidity | 5% ~ 90% |
Storage Humidity | 5% ~ 90% |
Accessories
Bulk Package | 2 x SCREW M2*2,D=5 (13G020302031AK) 1 x NUT M2 H=5.5mm (13G020195070AK) 1 x NUT M2 H=6.5mm (13G0201950B0AK) 1 x NUT M2 H=3.35mm (13G020271020AK) 1 x COM Cable (14G000000340AK) 1 x SATA HDD CABLE (14G000104503AK) |
---|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed. Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: NUC-N6415 Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with MCTX Mobile & Embedded Computers GmbH. |
