NUC-8665UE

ASROCK Industrial

Price on request

Product number: NUC-8665UE

Product information "NUC-8665UE"

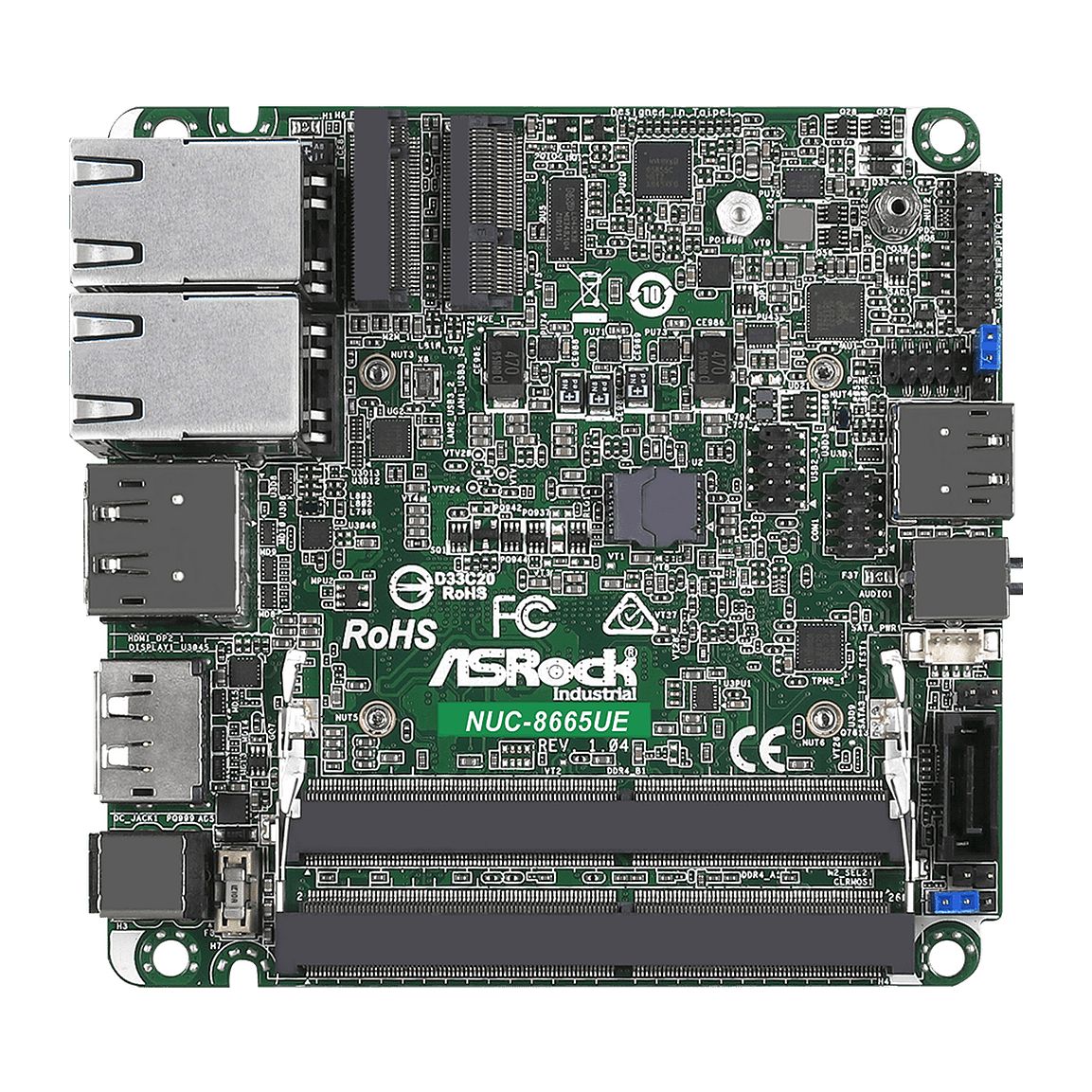

NUC-8665UE - NUC Single-Board-Computer from ASROCK Industrial with Intel® Whiskey Lake i7-8665UE x86 CPU NUC-8665UE - NUC Single-Board-Computer from ASROCK Industrial with Intel® Whiskey Lake i7-8665UE x86 CPU

Supported CPUs
CPU-Product Family Codename: Intel® Whiskey Lake Intel® Core™ i7-8665UE (8M Cache, up to 4.40 GHz)

Processor System

CPU	Intel 8th Gen(Whiskey lake-U)Core™ Processors NUC-8665UE(i7-8665UE QC, 1.8GHz, 15W)
Chipset	MCP
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	NUC (4.09-in x 4.02-in, 10.4 cm x 10.2 cm)

Memory

Technology	Dual Channel DDR4 2400 MHz
Capacity	32 GB (16 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel Gen9 Graphics DX 12
HDMI	HDMI 1.4 Max resolution up to 4096 x 2160@24Hz
DisplayPort	DisplayPort 1.2a, Max resolution up to 4096x2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

M.2	1 x Key E(2230) with PCIex1 and USB2.0 for Wireless

Audio

Interface	Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed	LAN1: Intel I219LM with 10/100/1000 Mbps, supports AMT/vPro LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector	2 x RJ-45

Front I/O

USB	1 x USB3.2 (Gen2)
Audio	1 (Mic-in or Line-out)

Rear I/O

HDMI	1 x HDMI 1.4
DisplayPort	2 xDP 1.2a
Ethernet	2 x 1 Gigabit LAN
USB	2x USB3.2(Gen2)
DC Jack	1

Internal Connector

USB	2 x USB2.0 (1 x 2.00 pitch header)
COM	1 x COM (RS232/422/485)
TPM	TPM2.0 on board IC
SATA PWR Output	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and SATA3 for SSD *M.2 Key M 2280(optional support, by bracket)
SATA	1 x SATA3(6Gb/s)
RAID	Intel SATA RAID 0/1

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments 0,1,2....255sec

Power Requirements

Input PWR	12V DC-in(DC Jack)
Power On	AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Bulk Package	2 x SCREW M2,D=5 (13G020302031AK) 1 x NUT M2 H=6.5mm (13G020295030AK) 1 x NUT M2 H=3.35mm (13G020295030AK) 1 x BRACKET FOR M.2 W/2*SCREW (13G030007000AK) 1 x SATA Data/Power Cable (14G000103111AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

All data is for information purposes only. The specification is subject to change without notice in advance. Any configuration other than original product specification is not guaranteed. Although all the information contained within this website is carefully checked, no guarantee of correctness is implied or expressed.
Please always double-check the latest version of the product specification of the product manufacturer. Manufacturer Product Website: NUC-8665UE
